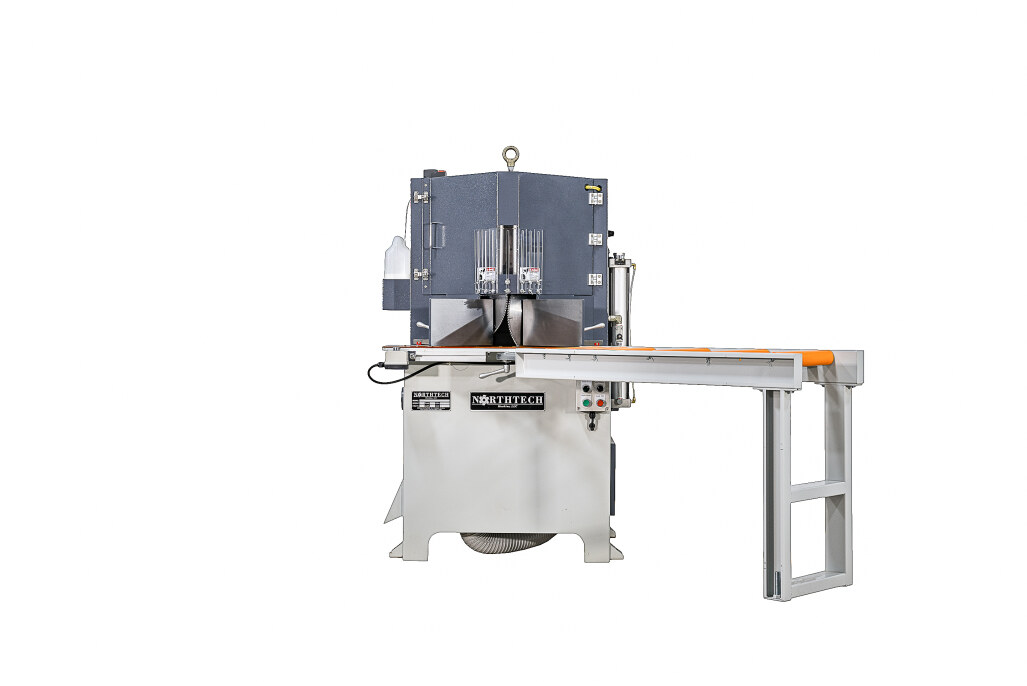

NT-PN14-AS PANEL NOTCHER
The PN14 is a our heavy duty panel notcher designed with air/hydraulic stroke, (2) 14″ blades powered by individual 5HP motors and a blade misting system. Often called a toe notcher or toe kick saw, this machine can be used to cut 90 degree notches up to 5″ x 5″ in wood, aluminum or plastic in material over 6″ thick.
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 30 / 15 Amps
ELEVATION STYLE: Pneumatic Cylinder
ELEVATION SYSTEM: Pneumatic Cylinder Linear Rails
TOTAL MACHINE HP: 10
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 24 Volt
PASS-LINE: 32-13/16''
CUTTING ENVELOPE: 5-1/2'' x 5-1/2''
MIN. WORKING LENGTH: 4''
MIN. WORKING WIDTH: 1/2''
MAX. WORKING THICKNESS: 6-3/4''
