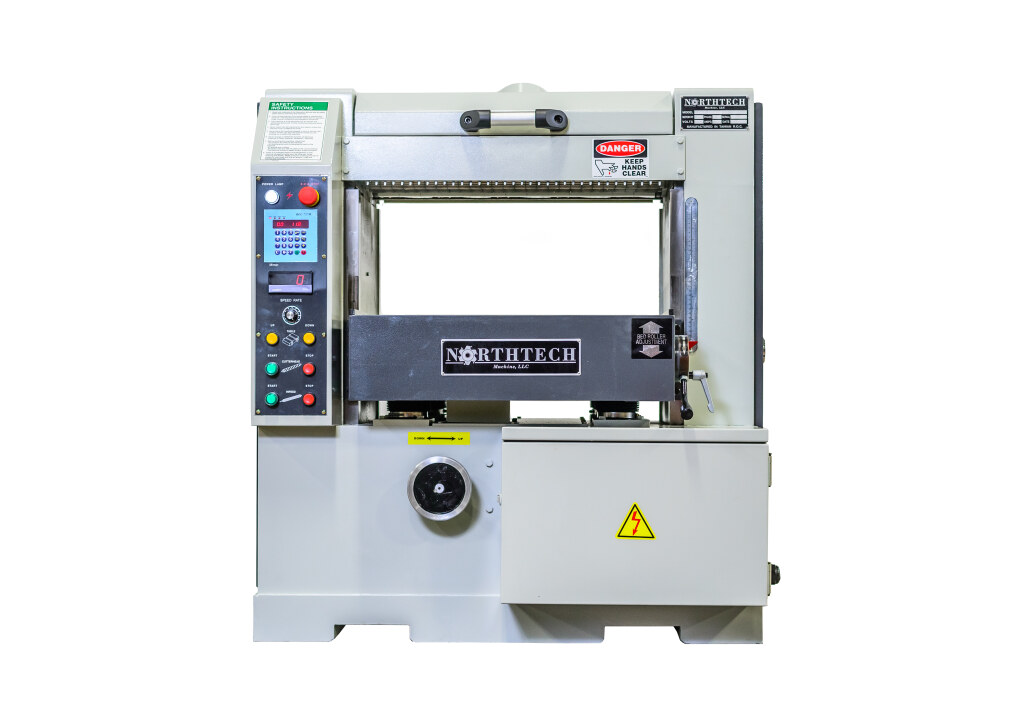

NT-660S-HCVS SINGLE SURFACE PLANER
The NT 660S-25 is our 25HP Single Surface Planer with 26″ working width. This planer has a heavy duty cast iron base, oversized column bed supports and spring loaded chip breakers. The 660 comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop and inverter speed control. It also comes standard with limit switches to restrict head access while on, front and rear emergency stop buttons, and anti kick back fingers for added safety. The corrugated sectional infeed rollers with smooth non marking outfeed rollers coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. Unlike many competitive models of single surface planers, all Northtech feed rollers are synchronized to turn at the same speed.
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 52/26 Amps
FEED HP: 2 HP
FEED SYSTEM: (2) Segmented Powered Rollers (1) Powered Steel Roller
DRIVE SYSTEM: 5-75 FPM
FEED SPEED RANGE: 5-75 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1 HP
ELEVATION STYLE: REC 727M Digital Readout
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 23 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
